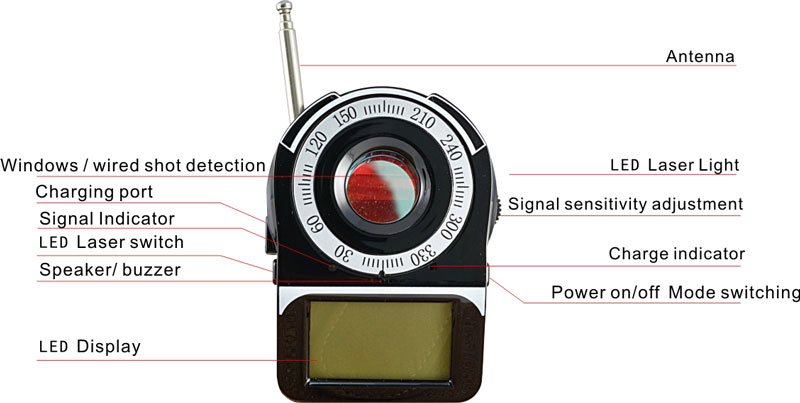

Function as follows:
1) with automatic detection, the host to carry, at risk when there is eavesdropping devices, pinhole cameras, casino ye lie. . . . . . Host will prompt your body automatically detects the danger.
2) has a signal strength indicator, to quickly find the source of the signal at
3) the sensitivity adjustment potentiometer can be adjusted (increased sensitivity to widen the detection range or lower sensitivity to shorten the detection range) radio power at faster to find.
4) Detection modes: a laser probe 2 vibration (silent) 3 beep detection probe detection 4.LED display 5. Headphone mute detection
5) low-voltage prompts, built-in rechargeable battery
Laser detection: host window can be seen through the eyes of all inside of the current situation facing the camera lens
Wireless Sweep: frequency detection range (1MHZ-605GHZ).
Instructions for use:
A. Detection Camera
1. Turn on the power switch, a string of red lights flash
2. Click the laser light switch, back of the instrument six LED flashes
3. Down and move around the instrument, laser scanning of the surrounding environment, observing the eye by the host window. Such as in front of a camera, you will find a strong bright spot in flash (with vibration and audio cues)
4. If you hold down a row switch, LED flashes every 2 seconds, a fast frequency level, then the fourth panel status lights will flash once. A total of eight choices, preferences can be adapted to all types of people
5. In pressing the switch to turn off the laser scanning
B. Detect radio waves (wireless cameras. Wiretapping, etc.)
1 sound detection:
1) Turn the power switch, power indicator light (blue light)
2) move around, if the flashing red light, a voice prompt that there are transmitters. Signal becomes stronger, the 4 LED lights at the same time, the sound becomes greatly changed quickly.
3) Pull out the antenna, adjust the potentiometer to the maximum, can widen the search.
4) gradually shorten the antenna, reverse the potentiometer to reduce the detection range, can eventually find the emission source
5) insert the headset can also be used
2 Silent detection:
1) Slide the power switch to the top of the power indicator light (blue light)
2) signal, only the flash and vibration.
3) Other operating above
Enhance this particular feature of this product, it is important for professionals.
D: Low Battery Tips
When the built-in battery voltage is low, the fourth panel status indicator will stop flashing
5 In order to avoid interference with phone calls or other wireless transmitter is equipped to detect the work should be suspended

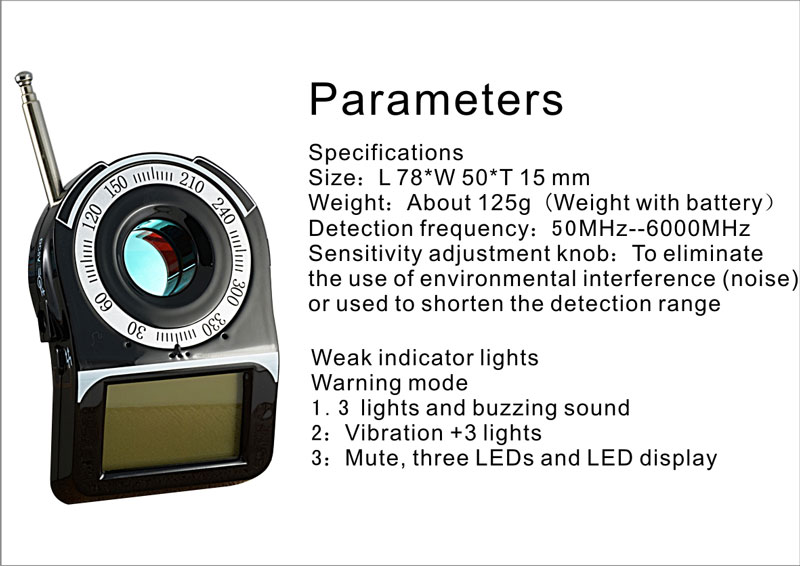

Laser detection camera from 10cm-10m (visually recognizable red light flashing)
Radio detection of camera range 5cm-10m (the decision to transmit power from the camera)
500mw-200mw power in the detection range 30-50cm
300mw-600mw power in the detection range 100-200cm
Power at 800mw - 1200mw detection range 300cm-1000cm
Power built-in lithium polymer battery 450mah
Current consumption 8Mh
Probe laser wavelength of 920nm
Receiving frequency range 1MHz-6500MHz
Special dedicated optical lens filter
Size: 93mm * 48mm * 17mm
1. People often use bank cards
(2) travel to the hotel for the trip home crowd
3 easily photographed the beauty of woman
4 consumer who frequented places of public entertainment
5. Frequented by people who try a variety of shopping malls
6. Respect their privacy and the privacy of others who
7 contact, keeping business secrets are
8 anti-photographed, anti-eavesdropping professionals
